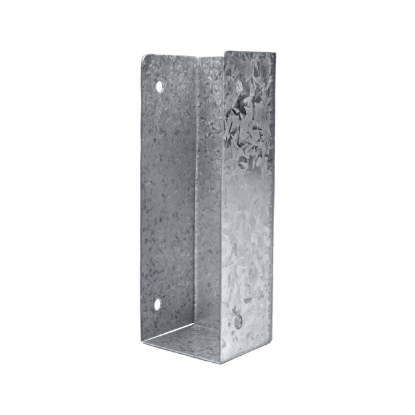

Boxspan 150mm Galvanised Framing Bracket FB150 Z450 Joist Hanger

The Boxspan 150mm Galvanised Framing Bracket is a heavy-duty structural joist hanger designed for strong, reliable floor and deck framing systems. Manufactured from high-quality Z450 galvanised steel, this bracket delivers exceptional corrosion resistance and long-term durability in demanding construction environments.

Engineered for precision and strength, this framing bracket supports inline flooring systems where joists align directly with bearers. It is ideal for low-set floors and deck structures requiring minimal clearance, ensuring a secure and stable connection between structural components.

With termite resistance and BAL FZ fire rating suitability, this bracket provides added peace of mind for residential and commercial building applications. Its robust U-shape design allows for easy installation using tek screw connections, ensuring efficient on-site assembly and consistent structural performance.

Key Highlights

• Manufactured from high-strength Z450 galvanised steel for superior corrosion resistance
• Designed for secure joist-to-bearer inline flooring and deck systems
• Suitable for low-clearance floor and deck construction applications
• Termite resistant and suitable for BAL FZ fire-rated building requirements
• U-shape design ensures strong structural support and alignment
• Easy installation using tek screw fixing system
• Ideal for residential and light commercial construction projects
• Australian manufactured for quality assurance and compliance

Technical Specifications

• Brand: Boxspan
• Product Type: Framing Bracket / Joist Hanger
• Model Name: Framing Bracket 150
• Model Number: FB150
• Material: Z450 Galvanised Steel
• Gauge: 1.5
• Shape: U Shape
• Application: Floor framing, deck construction, inline structural systems
• Corrosion Protection: Z450 galvanised coating

Compatibility & Safety Notice

• Must be installed in accordance with relevant Australian building standards
• Suitable for structural timber framing applications only
• Use correct fasteners (tek screws) as specified by manufacturer
• Installation should be performed by a qualified builder or carpenter
• Ensure correct load ratings are observed for structural safety
